Report Title: Display Screen Selection and Solutions for Downhole Operations Equipment — In-depth Analysis of AUO G150XTN06.0 and BOE Industrial-Grade Alternative Solutions

Company Information:

• Report Issued By: Hangzhou LEEHON Technology Co.,Ltd.
• Company Introduction: Hangzhou LEEHON Technology Co.,Ltd. is an authorized supplier and agent for globally renowned industrial-grade LCD screen brands such as BOE, AUO (AU Optronics), Kyocera, Innolux, Tianma, and IVO. Established in 2009 , LEEHON has been deeply involved in the industrial display sector for over a decade. With a professional technical team, stable supply chain, and comprehensive service system, the company is dedicated to providing one-stop display solutions and value-added services, from standard product selection to in-depth custom development, for clients in industrial control, medical equipment, automotive terminals, special-purpose equipment, and other sectors. LEEHON's product line covers small to medium-sized and large display modules from 2.0 inches to over 32 inches. They also offer customization services such as touchscreen integration, optical bonding, low-temperature heating, and high-brightness enhancements to meet specific customer needs, ensuring stable and reliable operation of display products in various harsh environments.
• Contact Information:
  • Tel/WeChat: 0571-86684288 / 15906639973
  • Email: info@leehon.com
  • Websites: https://www.lhlcdpanel.com/, https://www.lcd-panel.cn/
  •

Introduction: The Rigorous Challenges for Display Screens in Downhole Operations Equipment and LEEHON Technology's Professional Response

Downhole operations, particularly in fields like oil and gas exploration, mineral extraction, and geological surveying, present extremely complex and harsh environments for equipment. These include drastic temperature fluctuations (from extremely low to very high), continuous mechanical vibrations and shocks, high humidity, dust intrusion, and even potentially corrosive or explosive gases. These extreme conditions pose challenges far exceeding those of typical industrial environments for the electronic components within the equipment, especially for the display screen, which is the core of human-machine interaction. For the "industrial instrumentation" sector, while its downhole operation equipment may not always be used in ultra-deep oil and gas drilling, it could be deployed in mine control systems, underground utility tunnel monitoring, or other equally challenging subterranean industrial settings. Common factors in these environments, such as low temperatures, high temperatures, vibrations, humidity, and dust, all threaten the stable operation of display screens.

The display screen is an indispensable Human-Machine Interface (HMI) for downhole operations equipment, responsible for critical tasks such as real-time data display, equipment status monitoring, parameter adjustment, fault diagnosis, and alarms. The clarity, response speed, stability, and reliability of the display screen directly impact operational efficiency, decision-making accuracy, and even personnel and equipment safety. If a display screen fails in a harsh environment, it can lead to data loss, operational errors, equipment downtime, and even severe safety incidents and economic losses.

Hangzhou LEEHON Technology Co.,Ltd., as a seasoned supplier and solutions expert in the industrial display field, deeply understands the special requirements for display products in downhole and other harsh environments. We not only represent leading global brands of industrial-grade LCD screens like AUO and BOE but also provide comprehensive services from product selection and technical consultation to custom development, committed to creating display solutions that remain stable and reliable even under extreme conditions. LEEHON Technology's core value lies not only in providing high-quality display screen components but also in its strong "complete solution" capabilities and "customized product" services. This means we can offer value-added services such as low-temperature heating, optical bonding, high-brightness enhancements, touch function integration, and even complete system integration advice based on the specific environmental challenges of the customer's application, helping clients overcome the most difficult display challenges. This report aims to conduct an in-depth analysis of the AUO G150XTN06.0 LCD screen's features in the context of downhole operations equipment applications and to prominently recommend LEEHON Technology's BOE high-performance industrial display screens as alternative solutions, assisting customers in making the best selection decisions.

Chapter 1: Analyzing the Core Technical Requirements for Industrial Display Screens in Downhole Operations Environments

The unique nature of downhole operating environments imposes stringent demands on various performance indicators of industrial display screens. Selecting the right display screen first requires a deep understanding of these core technical requirements.

• Wide Operating Temperature Range and Thermal Shock Resistance
  • Challenge: Downhole equipment may encounter vast temperature differences, from ambient surface temperatures to high temperatures underground (due to geothermal heat or equipment self-heating) or low temperatures (when starting up on the surface in high-latitude regions during winter). Rapid temperature changes (thermal shock) severely test the stability of display materials.
  • Requirement: The display screen must maintain normal display functions (such as brightness, contrast ratio, response time, color saturation) and physical structural integrity over a wide temperature range, avoiding issues like slow liquid crystal response, image sticking, display abnormalities, or component damage. The physical properties of liquid crystal materials are temperature-sensitive; viscosity increases at low temperatures, leading to slower response, while high temperatures can cause phase changes leading to display failure. It is important to note that the nominal operating temperature specified in the display panel's specifications (e.g., -30°C to +85°C for the AUO G150XTN06.0) pertains to the panel itself. In an actual HMI (Human-Machine Interface) system, the internal ambient temperature of the HMI device might exceed or fall below the panel's nominal range due to heat generated by other internal electronic components or insufficient heating during startup in extremely cold conditions. Therefore, selecting a display panel with a wider operating temperature range provides greater margin for the thermal management design of the entire system, thereby enhancing the overall reliability of the equipment under varying internal and external thermal loads.
• Vibration and Shock Resistance
  • Challenge: Continuous mechanical vibrations and sudden shocks are unavoidable during downhole drilling, equipment transportation, and installation.
  • Requirement: The display screen needs a robust mechanical structure, such as a reinforced frame, reliable internal component fixation, and effective mounting methods (like the side M3 mounting holes of the G150XTN06.0 ). Key indicators include vibration resistance level (e.g., 1.5G for G150XTN06.0 ) and shock resistance. Products meeting standards like MIL-STD-810G typically offer better environmental adaptability. AUO emphasizes anti-vibration design in its industrial screens. Besides potentially causing direct physical damage, persistent vibration more commonly leads to long-term reliability issues such as connector loosening and solder joint fatigue. While the display panel's own vibration resistance rating (e.g., 1.5G) is fundamental, its mounting and fixation within the HMI system, the reliability of cable connections, and the use of structural enhancements like optical bonding collectively determine the final product's overall resistance to vibration and shock.
• Sealing Protection Level
  • Challenge: Downhole environments often involve dust, mud, moisture, and even oil, chemical solvents, etc..
  • Requirement: The display equipment (usually referring to the entire HMI system rather than the bare screen) needs an appropriate IP protection rating (e.g., IP65, IP66) to prevent the ingress of solid foreign objects and liquids, protecting internal electronic components. The first digit of the IP rating indicates the dust protection level, and the second indicates the water protection level. For example, IP65 means completely dust-tight and protected against low-pressure water jets from all directions; IP66 protects against high-pressure water jets. The final IP rating of the equipment depends on its housing design and the sealing treatment of all openings (such as the display screen, buttons, interfaces). Achieving a high IP rating for an HMI involves more than just selecting an IP-rated enclosure. The integration of the display, touchscreen (if equipped), connectors, and any buttons or switches must ensure a complete seal. This often involves using specialized gasket materials compatible with the specific operating environment (e.g., oil, chemicals) and precise assembly. LEEHON Technology's system integration experience in this area can provide crucial support to customers.
• Optical Performance: Sunlight Readability, Viewing Angle, and Display Quality
  • Challenge: Although "downhole" usually implies insufficient light, some control equipment may be installed in surface operation rooms or industrial sites with complex lighting conditions. Strong ambient light can make screen content difficult to discern.
  • Requirement: In such applications, the display screen needs sufficient brightness (standard industrial products like G150XTN06.0 are typically 400-450 nits ; sunlight readability usually requires 1000 nits or more ), high contrast ratio (G150XTN06.0 is 800:1 ), and effective anti-glare (AG) or anti-reflective (AR) surface treatment (G150XTN06.0 has AG ). Wide viewing angles (G150XTN06.0 is 80/80/70/80 ) are crucial for operators viewing from multiple angles. Optical bonding technology can significantly reduce reflection (by about 65% ), improving contrast and sunlight readability. For surface control equipment or mobile terminals that need to operate in strong ambient light or direct sunlight, the 400-450 nits brightness of the G150XTN06.0 may not be sufficient for clear readability. In such cases, LEEHON Technology can offer higher brightness display options (e.g., AUO G150XTN06.A with up to 1800 nits ) or enhance the readability of existing panels through optical bonding. By eliminating air gaps, optical bonding greatly reduces light reflection, thereby improving contrast and outdoor visibility, which is critical for ensuring operators can accurately obtain information under various lighting conditions.
• Long-Term Reliability and Mean Time Between Failures (MTBF)
  • Challenge: Downhole equipment typically requires long periods of continuous, stable operation, as any failure can lead to high repair costs and production losses.
  • Requirement: The display screen and its components (especially the backlight) should have a long MTBF. For example, the WLED backlight of the G150XTN06.0 is typically rated for ≥50,000 to 70,000 hours. Selecting A-grade products from reputable brands like AUO and BOE and paying attention to their stability test data under conditions like continuous vibration and temperature cycling is important. The MTBF of a display panel often focuses on the lifespan of the backlight unit, as it is a key consumable component. However, the overall reliability of the display also depends on the robustness of the TFT array, driver ICs, connectors, and the overall physical structure. Sourcing from reputable manufacturers like AUO and BOE and ensuring the panels are original A-grade quality are crucial prerequisites for minimizing component quality risks and achieving the nominal reliability specifications. LEEHON Technology's strict quality control in panel procurement provides a solid foundation for the reliability of customers' final products.
• Hazardous Area Safety Certifications
  • Challenge: In some downhole operation scenarios, especially those involving oil, natural gas, or specific chemicals, explosive gases or dust may be present, creating hazardous environments.
  • Requirement: Equipment (including HMIs) used in such environments must pass relevant safety certifications like ATEX (EU directive) or IECEx (international certification system) to ensure their design and construction do not become ignition sources. These certifications usually apply to the entire system; the display screen, as a component, must meet certification requirements regarding material selection and operating characteristics (such as surface temperature rise). Display panels themselves are not typically individually ATEX or IECEx certified; these certifications apply to the final HMI system. However, panel characteristics such as low power consumption (reducing heat generation), material properties, and ease of integration into explosion-proof enclosures can affect the ease with which the entire system obtains certification. LEEHON Technology, with its knowledge of various panel characteristics, can recommend display models that are easier to integrate into systems requiring such safety certifications.

Table 1: Summary of Key Technical Requirements for Display Screens in Downhole Operations Environments

导出到 Google 表格

Chapter 2: AUO G150XTN06.0 — An Ideal Choice Designed for Harsh Industrial Environments

The AUO G150XTN06.0 LCD screen has gained widespread attention in demanding fields such as downhole operations equipment due to its balanced performance and optimized design for industrial applications. This chapter will provide an in-depth analysis of this screen.

• AUO G150XTN06.0 Overview and Market Positioning
  • Manufacturer and Model: This display screen is produced by AU Optronics (AUO), a globally renowned display panel manufacturer, with the specific model number G150XTN06.0.
  • Basic Specifications: It is a 15.0-inch a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module (LCM).
  • Resolution and Aspect Ratio: It has a physical resolution of 1024x768 pixels (XGA), a pixel density of approximately 85 PPI, and uses the classic 4:3 aspect ratio, suitable for displaying traditional industrial control interfaces and data information.
  • Target Applications: The G150XTN06.0 is explicitly aimed at industrial applications, with its design fully considering the complexity of industrial environments and the high requirements for reliability.
  • Market Feedback and Customer Recognition: As noted by the user during the initial selection phase, the G150XTN06.0 has won customer favor in the industrial instrumentation industry, particularly in the field of downhole operating equipment that needs to cope with harsh conditions, thanks to its excellent wide temperature characteristics, stable operating performance, and relatively reliable long-term supply expectations (User Query).
• Detailed Technical Parameter Interpretation
  To comprehensively evaluate the suitability of the G150XTN06.0, the following table summarizes its core technical parameters:
  Table 2.1: AUO G150XTN06.0 Core Technical Parameters

• Core Advantage Analysis
  • Wide Temperature Performance: One of the most significant advantages of the G150XTN06.0 is its wide operating temperature range: -30°C to +85°C. This feature is crucial for downhole operations equipment. Downhole environments experience drastic temperature changes, facing both high heat generated by the equipment itself and extremely low ambient temperatures during surface startup. The G150XTN06.0's wide temperature design ensures reliable startup and stable operation of the display screen under these extreme conditions, effectively preventing display function abnormalities caused by temperature issues. Compared to many standard industrial display screens with a typical operating range of -20°C to +70°C, the G150XTN06.0 offers greater operating margins at both low and high temperature extremes, which directly helps improve the equipment's adaptability and reliability in harsh environments.
  • Performance Stability: The "performance stability" valued by customers is reflected in several aspects. Firstly, the G150XTN06.0 has a vibration resistance of 1.5G (14.7 m/s²) , enabling it to withstand common mechanical stresses during downhole operations and equipment transportation, reducing failures caused by vibration. Secondly, its screen surface is treated with Anti-glare and Hard coating (3H) , which not only enhances readability in complex lighting conditions but also improves the screen surface's resistance to wear and scratches. Furthermore, it uses WLED backlight technology with a theoretical working life of up to 50,000 to 70,000 hours , ensuring the durability and consistency of the display brightness, significantly reducing maintenance needs and replacement costs due to backlight aging. Additionally, the product complies with RoHS standards , indicating that its material selection and manufacturing processes adhere to environmental protection and safety regulations, which is also an aspect of high-quality industrial products. AU Optronics, as a well-known manufacturer of industrial-grade panels, its long-term investment and technological accumulation in the industrial display field also provide brand endorsement for the overall performance stability of the G150XTN06.0.
  • Long-Term Supply Assurance: For industrial equipment manufacturers, the long-term stable supply of core components is crucial, directly related to product lifecycle management and subsequent maintenance and upgrade costs. As a product targeted at the industrial market, the supply continuity of the G150XTN06.0 is a key concern for customers. According to industry information, AUO typically provides longer lifecycle support for its industrial-grade products, such as promising continuous supply for several years and offering compatible replacement models when products are updated. Based on the G150XTN06.0's information, its latest datasheet version Ver2.0 was released on October 19, 2021 , and multiple distribution channels show ample stock. These signs indicate that this model is currently in normal production and supply, not a product nearing discontinuation (note the distinction from discontinued models like G150XTN06.3 ). As an authorized agent of AUO, Hangzhou LEEHON Technology Co.,Ltd. can provide customers with precise supply status information for the G150XTN06.0, future supply expectations, and possible alternative solution recommendations, thereby ensuring the smooth progress and long-term development of customer projects.
• Application Adaptability Considerations
  • The G150XTN06.0 uses a standard XGA (1024x768) resolution, which is still widely adopted in many industrial HMI applications and can clearly display necessary control information and data charts. Its LVDS interface is also a mature and common signal interface type in industrial motherboards and control systems, facilitating system integration. The side mounting hole design provides convenience for embedded installation into various equipment enclosures and control panels.
  • However, it should be noted that the G150XTN06.0 uses TN (Twisted Nematic) type liquid crystal technology. Although TN technology has advantages such as fast response speed and lower cost, it has certain limitations in viewing angles compared to wide-viewing-angle technologies like IPS (In-Plane Switching), AHVA (Advanced Hyper-Viewing Angle, AUO's IPS-like technology), or ADS (Advanced Super Dimension Switch, BOE's IPS-like technology). The G150XTN06.0's nominal viewing angles are 80°/80° (Left/Right) and 70°/80° (Up/Down). For some HMI applications that require viewing the screen from a larger offset angle, operators may experience color shift or reduced contrast. This will be an important comparative factor when introducing BOE's wide-viewing-angle technology products in subsequent chapters.

Chapter 3: Beyond Standard Products: LEEHON Technology's BOE Industrial Display Solutions

When meeting the demanding application needs of downhole operations equipment, in addition to mature products like the AUO G150XTN06.0, LEEHON Technology, through its close cooperation with global display technology leader BOE, can offer customers more diversified and technologically advanced industrial display screen options.

• LEEHON Technology and BOE's Strategic Cooperation

  • BOE Technology Group Co., Ltd. (BOE) is one of the leading enterprises in the global semiconductor display industry. Its display screen shipments have long held a leading position in the global market, and it possesses strong capabilities in technological innovation, production line layout, and supply chain integration. BOE has profound technological accumulation and rich product lines in multiple fields such as industrial, medical, automotive, and IoT.
  • Hangzhou LEEHON Technology Co.,Ltd., as a core authorized agent and solutions partner for BOE industrial display products , can ensure that customers receive genuine BOE original factory resources, the latest product technology information, competitive prices, and localized professional technical support and services.
  • This strategic partnership enables LEEHON Technology not only to provide BOE's standard industrial display screens but also to combine BOE's advanced technology platform with LEEHON's own value-added service capabilities to create customized display solutions highly tailored to customer application needs. BOE's strong R&D investment and market share also provide a guarantee for the long-term stability of this cooperation.

• Technical Advantages of BOE Industrial Display Screens

  • ADSDS Technology (Advanced Super Dimension Switch): This is BOE's core wide-viewing-angle technology with independent intellectual property rights, belonging to the IPS technology family.

    • Core Advantages: ADSDS technology, by optimizing liquid crystal molecule arrangement and electrode structure, achieves extremely wide effective viewing angles (typically 85° or 89° up, down, left, and right, CR≥10), maintaining color accuracy and image clarity at various angles, significantly outperforming traditional TN panels. Simultaneously, ADSDS screens are less prone to water ripple phenomena when pressed by external force, which is particularly important for HMI devices requiring touch operation, enhancing the operating experience and screen durability. Furthermore, ADSDS technology has higher light transmittance, which helps achieve higher brightness under the same backlight conditions or reduce power consumption at the same brightness.

  • Wide Temperature Performance and Reliability: BOE has also launched numerous display screen models with wide operating temperature capabilities for industrial applications. For example, its DV150X0M series and models like EV150X0M-N10, HM150X01-N01 (15-inch XGA industrial screens) typically support an operating temperature range of -20°C to +70°C. Although the low-temperature end of this standard range is slightly higher than the G150XTN06.0's -30°C, BOE products also adhere to strict industrial quality control standards in structural design, material selection, and production processes, ensuring reliable operation within the nominal range. Their backlight systems also generally have a theoretical lifespan of up to 50,000 hours. BOE's design philosophy for industrial display products emphasizes high reliability and environmental adaptability.

  • Long-Term Supply Commitment: As a global leader in the display industry, BOE has long-term strategic investments and stable supply policies for key application markets like industrial displays. LEEHON Technology, based on close communication with BOE, can provide customers with lifecycle information for recommended models and plans for replacement solutions after discontinuation, ensuring the stability of the customer's supply chain.

  • BOE's ADSDS technology brings significant viewing angle advantages to HMI applications. Although the -20°C low-temperature specification of some standard BOE 15-inch panels is not as good as the G150XTN06.0's -30°C, LEEHON Technology can enable BOE panels to meet or even exceed the -30°C low-temperature operating requirement through customized solutions such as integrating heating films (see Chapter 4 for details). This allows customers to enjoy the wide viewing angles and excellent touch experience of ADSDS technology without compromising on low-temperature performance, making BOE panels a highly competitive option.

• Recommended BOE 15-inch XGA Industrial-Grade Display Screen Models
  Considering the core requirements of downhole operations equipment for display screens and the technical characteristics of BOE products, LEEHON Technology recommends the following 15-inch XGA industrial-grade display screens as alternatives:

  • Model Series 1: BOE DV150X0M-N10 / N11 / N12 / N16
    • Core Parameters: 15-inch, 1024x768 resolution, ADS technology, brightness 350-600 nits (varies by sub-model), contrast ratio 1000:1, viewing angle 89/89/89/89 (U/D/L/R, CR≥10), operating temperature -20~+70°C, backlight lifetime 50,000 hours, LVDS or eDP interface.
    • Recommendation Reason: Utilizes ADS wide-viewing-angle technology, providing an excellent visual experience and multi-angle readability. Diverse brightness specifications meet the needs of different application scenarios.
  • Model 2: BOE EV150X0M-N10
    • Core Parameters: 15-inch, 1024x768 resolution, ADS technology, brightness 350 nits, contrast ratio 1000:1, viewing angle 89/89/89/89 (U/D/L/R, CR≥10), operating temperature -20~+70°C, backlight lifetime 50,000 hours, LVDS interface.
    • Recommendation Reason: Also uses ADS wide-viewing-angle technology, with balanced parameters, making it an industrial-grade display screen with good overall performance.
  • Model 3: BOE HM150X01-N01
    • Core Parameters: 15-inch, 1024x768 resolution, panel technology varies by data source (some indicate TN , some emphasize wide viewing angle or IPS ), brightness 350 nits, contrast ratio 700:1 (typical for TN, potentially higher for IPS/ADS), viewing angle (similar to 80/80/80/80 for TN, or 85/85/85/85 or higher for wide viewing angle), operating temperature -20~+70°C, backlight lifetime 50,000 hours, LVDS interface. LEEHON Technology's official website data indicates it has a wide viewing angle.
    • Recommendation Reason: If it is the wide-viewing-angle version, it offers outstanding cost-effectiveness; even if it is the TN version, its long-life backlight and BOE's quality assurance make it an economical and reliable choice. Customers are advised to confirm the latest technical version of this model with LEEHON Technology based on specific viewing angle requirements.

  Table 3.1: Key Parameter Comparison between AUO G150XTN06.0 and Recommended BOE Models

• LEEHON Technology's BOE Product Value-Added Services
  • As mentioned earlier, BOE standard products may differ from the G150XTN06.0 in certain parameters (such as native low-temperature operating range). LEEHON Technology's core value lies in its ability to bridge these differences and even provide solutions that surpass standard product performance. By integrating transparent heating films, the low-temperature operating limit of BOE panels can be extended to -30°C, -40°C, or even lower, enabling them to fully meet or exceed the low-temperature specifications of the G150XTN06.0. Simultaneously, combined with optical bonding processes, the readability of BOE wide-viewing-angle panels in strong light environments and the overall structural robustness can be further enhanced. These value-added services will be detailed in the next chapter.

Chapter 4: LEEHON Technology — Your Trusted Partner for Industrial Display Solutions

Hangzhou LEEHON Technology Co.,Ltd. is more than just a supplier of industrial display screens; we are a technical partner for customers facing complex application challenges. The value we provide extends beyond mere product sales to complete solution design and implementation.

• Comprehensive Brand Agency and Product Portfolio
  • LEEHON Technology is an officially authorized agent and distributor for many international first-tier LCD screen brands, including AUO, BOE, Kyocera, Innolux, Tianma, and IVO. This means we can offer customers an extremely wide range of product choices, covering different specifications and technical features such as small to large sizes, standard to ultra-high brightness, TN to IPS/ADS wide viewing angles, and conventional to ultra-wide temperatures. This comprehensive product portfolio ensures that customers can find the most suitable display solution at LEEHON Technology based on their specific application needs and budget.
• Professional Technical Support and Value-Added Services
  • LEEHON Technology's core competitiveness lies in our professional localized technical support team and strong value-added service capabilities, enabling us to provide customers with full-process support from selection consultation, solution design, sample testing, to mass production and after-sales service.
  • Display Customization Services:
    • Low-Temperature Solutions: Transparent Heating Film Technology:
      • Principle and Application: For environments like downhole operations that may encounter extremely low temperatures (e.g., -30°C, -40°C, or even -50°C), the response speed of liquid crystal materials in standard LCD screens significantly decreases, or they may even freeze, leading to abnormal display. LEEHON Technology uses advanced transparent heating film technology. By laminating a conductive layer of ITO (Indium Tin Oxide) or other transparent conductive film onto the surface or internal layers of the LCD screen, uniform heat is generated when electricity is applied. This raises the operating temperature of the LCD screen, ensuring its rapid startup and stable display in low-temperature environments. This technology can be applied to panels like BOE's, which have a native operating temperature of -20°C, to meet more stringent low-temperature requirements.
      • Technical Considerations: Integrating heating films requires precise control of heating power, temperature uniformity, and response time, while minimizing the impact on display optical performance (such as transmittance, clarity, haze) and ensuring the long-term reliability of the entire heating system. LEEHON Technology has extensive experience in heating film selection, integration, and testing, and can provide customers with optimized low-temperature display solutions. For example, for a 15-inch display screen (active display area approx. 304mm x 228mm, area approx. 693 cm2 or 107 square inches), the heating power is typically designed in the range of 0.1 to 5 watts per square inch, depending on the required heating rate and environmental conditions. Bonded heaters generally require lower power than standalone heaters.
      • Solution Trade-offs: When choosing between a native wide-temperature panel (like AUO G150XTN06.0) and a standard-temperature panel with an added heating film, customers need to comprehensively consider initial cost, system complexity, additional power consumption, and potential failure points of the added heating film component. LEEHON Technology's professional team will assist customers in analyzing specific application scenarios, weighing the pros and cons, and selecting the most suitable solution.
    • Optical Bonding:
      • Process and Advantages: Optical bonding is a process where the air gap between the cover glass or touchscreen and the LCD module is completely filled and cured with optical adhesive. Its core advantages are: 1) ​Significantly improved readability​: Eliminating the air gap can reduce internal light reflectivity from about 4-5% to below 1%, even as low as 0.2% , thereby significantly increasing contrast, reducing ambient light interference, and markedly improving display effects, especially in outdoor or strong light environments, with reflection reduced by about 65% ; 2) ​Enhanced structural strength​: The cured optical adhesive makes the entire display module a sturdy unit, improving its resistance to shock and vibration; 3) ​Prevention of condensation and foreign object ingress​: Eliminating the air layer avoids internal fogging due to temperature differences or dust particles entering and affecting the display.
      • Value for Downhole Applications: For downhole equipment, optical bonding not only improves visibility in complex lighting conditions but also enhances the display screen's tolerance to harsh environments. LEEHON Technology provides professional OCA (Optically Clear Adhesive tape) and OCR (Optically Clear Resin) bonding services.
    • Touch Panel Integration:
      • According to application needs, LEEHON Technology can integrate various types of touchscreens for customers, including resistive touchscreens (supporting glove operation, strong anti-interference) commonly used in industrial environments, and capacitive touchscreens (supporting multi-touch, good light transmittance, excellent operating experience). We also offer customization services for special specification touchscreens such as irregular shapes and round screens, and can optimize PCAP capacitive screens for glove operation.
    • Enclosure and Ruggedization Design Advice:
      • With extensive experience in the industrial display field, LEEHON Technology can provide professional advice to customers on HMI overall structural design, material selection, sealing processes, etc., assisting customers in achieving ruggedized display equipment that meets specific IP protection levels and anti-vibration/shock requirements.

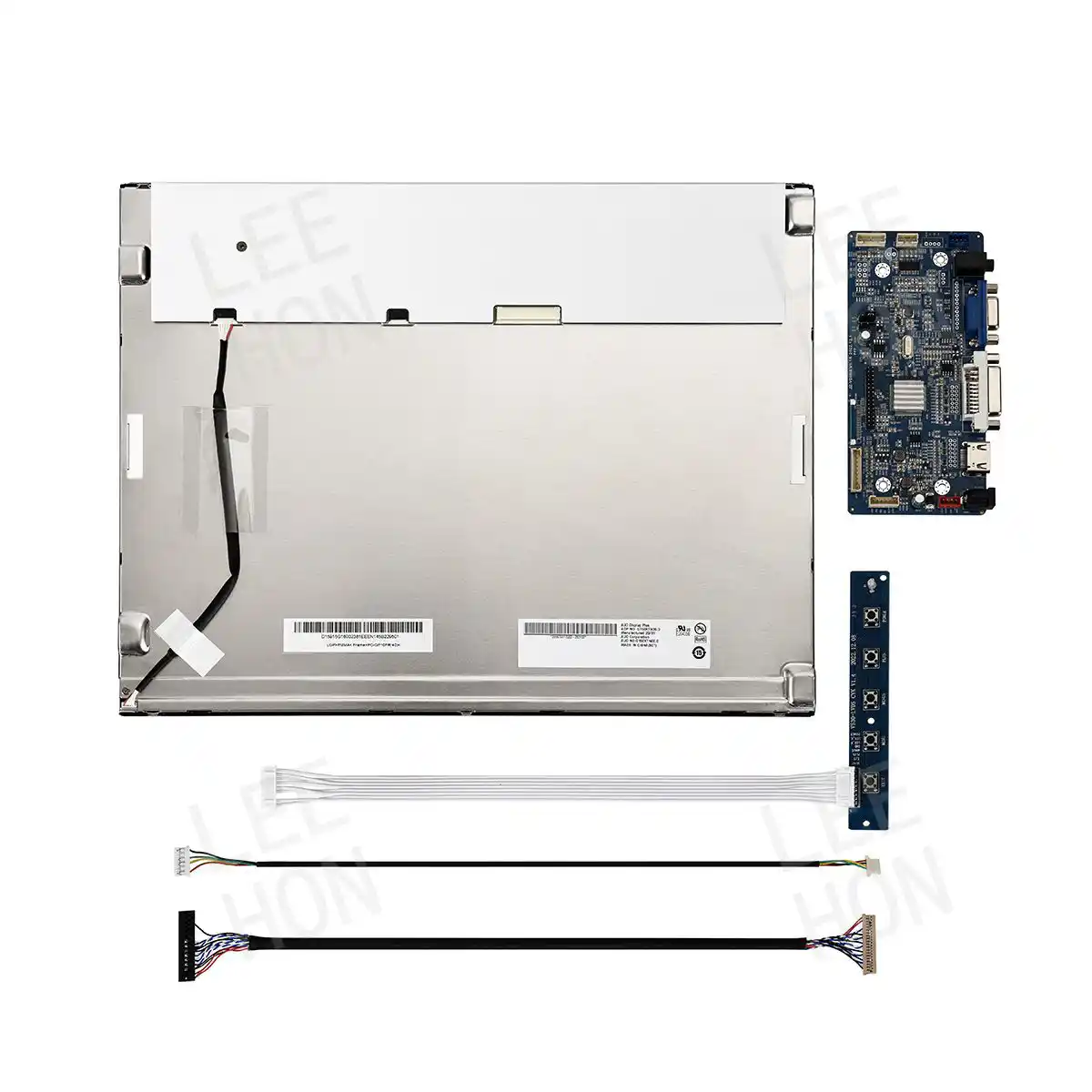

    • Driver Board Selection and Kitting:
      • We provide driver boards, cables, and other配套 components perfectly matched to the selected display screen (including customized screens), supporting various interfaces such as LVDS, eDP, HDMI, VGA. We can also offer OSD menu customization, signal conversion, and other services according to customer needs, ensuring stable and efficient operation of the display system.
• Quality Commitment and Supply Chain Management
  • Original Genuine Product Guarantee: LEEHON Technology promises that all AUO, BOE, and other brand display screens supplied are original A-grade genuine products, rejecting B-grade, C-grade, or refurbished screens, ensuring product quality and performance reliability from the source.
  • Strict Quality Inspection: For customized integrated products, such as modules with added heating films, optical bonding, or touchscreens, LEEHON Technology will implement strict factory inspection processes to ensure that all performance indicators meet customer requirements and industry standards.
  • Comprehensive After-Sales Service: We provide comprehensive after-sales technical support and product warranty services. For problems encountered by customers during use, we can respond quickly and provide solutions.
  • Supply Chain Stability: Leveraging long-term stable cooperative relationships with major panel manufacturers and professional market forecasting capabilities, LEEHON Technology is committed to providing customers with continuous and stable supply guarantees and actively assists customers in coping with supply chain risks brought by market fluctuations and product iterations.
  • Certifications: LEEHON Technology (or its partner suppliers) products comply with relevant industry certifications, such as EN 55032, RoHS, CE certifications mentioned in Alibaba TrustPass supplier information , and UL certification records. These certifications reflect our emphasis on product safety and environmental protection.
• Charts/Images (for Chapter 4):
  • Figure 4.1: Diagram Illustrating Optical Bonding Principle
    •
    • Caption: Optical bonding significantly reduces internal reflection by eliminating air gaps, thereby increasing light transmittance and contrast, enhancing the display's readability in strong light and improving structural strength.
  • Figure 4.2: Diagram Illustrating Transparent Heater Integration
    •
    • Caption: A transparent heating film (e.g., ITO film) is integrated into the LCD screen. When powered, it generates heat, ensuring the liquid crystal operates normally in low-temperature environments.
  • Figure 4.3: IP Rating Explanation Chart
    •
    • Caption: The IP (Ingress Protection) rating system indicates the enclosure's ability to protect against solid foreign objects and liquid ingress. For example, IP65 means completely dust-tight and protected against low-pressure water jets.

Chapter 5: Industrial Display Screen Market Trends and Technological Outlook

Understanding the macroeconomic trends and technological development directions of the industrial display screen market helps customers make more forward-looking decisions in current and future product planning.

• Industrial Display Screen Market Growth Trends

  • The global industrial display screen market, especially the rugged industrial display screen market, is experiencing continuous stable growth. According to market research institutions, the rugged industrial display screen market size is projected to grow from approximately USD 4.58 billion in 2024 to USD 7.54 billion by 2029, with a compound annual growth rate (CAGR) of 10.4%. Another report predicts that the overall industrial display market size will grow from approximately USD 5.63 billion in 2024 to USD 5.99 billion in 2025, reaching USD 7.9 billion by 2029, with a CAGR of about 7.2%. The broader rugged display market (including non-industrial applications) reached USD 10.63 billion in 2023 and is expected to grow to USD 18.02 billion by 2032, with a CAGR of 6.08%.
  • The main drivers of market growth include the deepening of industrial automation (Industry 4.0, Industrial Internet of Things IIoT), the widespread application of Human-Machine Interfaces (HMI) in various industries, and the strong demand for durable display solutions capable of reliable operation in harsh environments in sectors such as oil and gas, mining, energy, transportation, and military defense.
  • The oil and gas industry is a significant application area for rugged HMIs and display screens. The unique characteristics of its operating environment (high temperature, high pressure, vibration, potential explosive gases, etc.) place extremely high demands on the reliability and safety of display equipment. This trend validates the urgent need for high-performance, high-reliability display screens in downhole operations equipment and also provides a broad market space for LEEHON Technology and its partners (such as AUO, BOE).

  Figure 5.1: Global Rugged Industrial Display Market Growth Forecast

  • Caption: The global rugged industrial display market is expected to maintain strong growth in the coming years, with a CAGR exceeding 10%. Data source: The Business Research Company, 2025.

• Emerging Display Technologies and Features

  • Continuous Improvement in Optical Performance: Industrial display screens are developing towards higher resolution (4K or even 8K), higher brightness (to meet outdoor direct sunlight requirements), higher contrast ratio, wider color gamut, and faster response times.
  • Deepening Integration of Touch Technology: Capacitive touchscreens (PCAP) are increasingly becoming mainstream due to their excellent light transmittance, multi-touch capability, and support for gloved operation (through specific optimizations), especially in HMI applications requiring intuitive interaction.
  • Low Power Consumption and Green Environmental Protection: With the popularization of energy efficiency and sustainable development concepts, low power consumption design has become an important development trend for industrial display screens. Adopting high-efficiency LED backlights, dynamic brightness adjustment, and low-power technologies such as BOE's promoted Oxide TFT helps reduce equipment energy consumption, extend battery life (for portable devices), and reduce carbon footprint.
  • Exploration of Emerging Display Technologies: Emerging display technologies such as OLED (Organic Light Emitting Diode) and Micro/Mini LED show potential in specific high-end or innovative applications due to their self-emissive, high contrast, flexible, and bendable characteristics. However, in traditional industrial fields with extremely high requirements for cost, lifespan, and long-term reliability in extreme environments (especially high temperatures), mature LCD technology (especially optimized wide-temperature, ruggedized LCD) will continue to dominate in the foreseeable future due to its decades of application verification and cost advantages.
  • For applications like downhole operations that demand extreme reliability and environmental tolerance, selecting LCD solutions that are well-established in the market, technologically mature, and have a stable supply chain—such as the AUO G150XTN06.0 and BOE's industrial-grade LCD products discussed in this report—combined with LEEHON Technology's professional customization services, is currently a robust strategy for ensuring project success. Simultaneously, LEEHON Technology will continue to monitor the development of emerging display technologies and introduce innovative achievements with application value to customers in a timely manner.

Chapter 6: Conclusion and Selection Recommendations

After a detailed analysis of the special requirements of the downhole operating environment, the AUO G150XTN06.0 display screen, and an introduction to BOE industrial-grade alternative solutions and LEEHON Technology's value-added services, this report aims to provide clear guidance for customers in selecting display screens for downhole operating equipment.

• AUO G150XTN06.0 Comprehensive Evaluation
  • The AUO G150XTN06.0, with its excellent wide operating temperature range of -30°C to +85°C, 1.5G vibration resistance, and backlight lifespan of up to 50,000 to 70,000 hours, is indeed a display screen well-suited for use in harsh industrial environments, especially in applications like downhole operations that have high requirements for temperature and stability. Its 4:3 aspect ratio and XGA resolution are still applicable to many traditional industrial control interfaces, and AUO's commitment to long-term supply for industrial products also provides customers with good assurance.
  • However, its TN panel technology has certain limitations in viewing angles (nominally 80/80/70/80) compared to wide-viewing-angle technologies like IPS and ADS, which may affect the visual experience in some applications requiring screen viewing from larger offset angles. Additionally, its typical brightness of 450 nits performs well in standard industrial environments but may require additional optical enhancement (such as optical bonding) or selection of higher brightness models in extreme cases of strong ambient light or direct outdoor sunlight.
• BOE Industrial Display Screens as a High-Quality Alternative Solution
  • BOE, as a global leader in display technology, offers an industrial-grade display screen product line, particularly models using ADSDS technology (such as the DV150X0M series, EV150X0M-N10), which have significant advantages in viewing angles (typically up to 89/89/89/89), color performance, and resistance to water ripple effects when the touchscreen is pressed, making them very suitable for modern HMI applications. These BOE panels also feature industrial-grade reliability designs and long backlight lifespans.
  • Although the native operating temperature range of some standard BOE 15-inch XGA panels (e.g., -20°C to +70°C) is slightly narrower than that of the G150XTN06.0, LEEHON Technology can effectively extend their low-temperature operating capability to -30°C or even lower through professional value-added services, such as integrating transparent heating film technology, completely bridging this gap. Combined with optical bonding technology, their readability in complex light environments and overall structural robustness can be further enhanced. This means customers can enjoy the excellent visual and interactive experience brought by BOE's advanced display technology without worrying about its adaptability in extreme environments.
• Selection Decision Checklist
  To assist customers in making the most appropriate choice based on specific needs, LEEHON Technology recommends referring to the following checklist:
  1. Critical Operating Temperature Range: What are the actual minimum and maximum ambient temperatures during equipment operation? Is it necessary to consider internal equipment heating or rapid external temperature changes?
     • If -30°C or lower is required, G150XTN06.0 offers native support; BOE panels would require LEEHON Technology's low-temperature solution.
  2. Vibration/Shock Resistance Level Required: What is the maximum vibration and shock intensity the equipment may encounter during operation or transportation?
     • G150XTN06.0 provides 1.5G vibration resistance. For higher requirements, consult LEEHON Technology for ruggedization solutions.
  3. IP Rating for Enclosure Needed: What is the equipment's dust and water protection level requirement (e.g., IP65, IP66)?
     • LEEHON Technology can provide overall system integration advice to ensure the selected panel, in conjunction with the enclosure, meets the target protection level.
  4. Viewing Angle Requirements: Do operators need to clearly view the screen from multiple angles?
     • If high viewing angles are required, BOE's ADS panels are a better choice.
  5. Sunlight Readability/High Brightness Needed: Will the equipment be used in strong ambient light or direct outdoor sunlight?
     • If this is a requirement, consider BOE high-brightness models or apply optical bonding to G150XTN06.0/BOE standard brightness models.
  6. Hazardous Area Certification for System: Will the equipment be used in environments with explosive risks (requiring ATEX/IECEx certification)?
     • LEEHON Technology can recommend panels suitable for integration into such certified systems and provide related technical consultation.
  7. Budget Constraints: What is the project's cost budget range while meeting core performance requirements?
     • Different technical solutions (e.g., native wide temperature vs. standard temperature + heating film, TN vs. ADS) have different costs. LEEHON Technology can provide various cost-effective solutions.
  8. Long-Term Availability & Lifecycle Management: What are the project's requirements for display screen supply cycle and end-of-life replacement?
     • LEEHON Technology, based on its cooperation with original manufacturers like AUO and BOE, will provide customers with the latest product lifecycle information and supply assurance plans.
• Partnering with LEEHON Technology to Create the Future of Displays
  • Selecting a display screen for downhole operations equipment is a comprehensive technical decision that requires balancing multiple factors such as performance, reliability, cost, and supply chain. Hangzhou LEEHON Technology Co.,Ltd., with its years of deep cultivation and professional accumulation in the industrial display field, as well as close cooperation with top panel manufacturers like AUO and BOE, can provide customers with comprehensive support from standard product recommendations, in-depth technical analysis, customized solution development, to stable mass production supply.
  • Whether you value the mature reliability and ultra-wide operating temperature of the AUO G150XTN06.0, prefer the advanced wide-viewing-angle technology and comprehensive performance of BOE industrial screens, or require special customization for specific downhole application scenarios, LEEHON Technology's professional team will serve you wholeheartedly, providing the display solution that best meets your needs.
  • We sincerely invite you to contact Hangzhou LEEHON Technology Co.,Ltd. to discuss your project requirements. Let us use our professional display technology to help your downhole operations equipment operate stably in harsh environments and create greater value.
  • Contact Information:
    • Tel/WeChat: 0571-86684288 / 15906639973
    • Email: info@leehon.com
    • Websites: https://www.lhlcdpanel.com/, https://www.lcd-panel.cn/

Disclaimer: The information contained in this report is based on data and materials available as of the report's publication date. Hangzhou LEEHON Technology Co.,Ltd. strives for its accuracy and completeness but assumes no responsibility for any direct or indirect losses resulting from the use of the content of this report. Specific product parameters and supply situations are subject to the latest information provided by LEEHON Technology sales representatives.
