Downhole Operation Equipment Screen Selection and Solutions (G150XTN06.0)

This report is provided by Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司), a leading supplier and authorized agent for major display manufacturers including BOE, AUO, Kyocera, Innolux, Tianma, and IVO. Our goal is to offer comprehensive selection assistance and promote the advanced display solutions available through LEEHON, with a special emphasis on our extensive range of BOE products.

1. Executive Summary

This report aims to conduct a technical evaluation of the AU Optronics (AUO) G150XTN06.0 display panel, specifically for the demanding environment of downhole operation equipment, and to explore comprehensive display solutions including this model and alternatives. Downhole operating environments place extremely high demands on display devices in terms of extreme temperature tolerance, optical performance, structural robustness, and long-term supply stability. The AUO G150XTN06.0, with its excellent wide operating temperature range, is a candidate. However, its TN display technology and the potential need for additional reinforcement and certification in practical applications must be weighed against panels from brands like BOE, which often utilize ADS technology. The latter typically offer superior optical characteristics but may require customized solutions to meet extremely low operating temperature requirements. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司), as a key supplier and authorized agent for both AUO and BOE ^^, is well-positioned to provide and support these options. This report will delve into these critical factors, providing professional technical reference and decision support for screen selection in downhole operation equipment, highlighting how LEEHON can facilitate the optimal choice, particularly from BOE's product lines.** **

2. Introduction: Display Needs for Downhole Operation Equipment

2.1. Unique Challenges of the Downhole Environment

Downhole operating environments are notorious for their extreme and variable conditions, posing severe tests for the reliability of electronic equipment. These challenges primarily include:

• ​Wide Temperature Fluctuations​: Equipment may need to operate stably at temperatures far below freezing (e.g., -30°C or lower) and extremely high temperatures (e.g., +85°C). Most commercial displays have an operating temperature range of 0°C to 50°C, which is inadequate for such extreme demands.
• ​High Shock and Strong Vibration​: Continuous vibrations and sudden shocks from drilling, machinery operation, and equipment transport place high demands on the structural integrity of display screens and the connection of internal components.
• ​Harsh Physical Environment​: Airborne dust, moisture, and potentially corrosive gases or liquids can penetrate equipment, leading to short circuits or corrosion damage.
• ​Potential Explosive Atmospheres​: In oil, gas, and some mineral extraction operations, flammable or explosive gases or dust may be present downhole or near the operational surface, requiring equipment to have appropriate explosion-proof certifications.

Literature details the exposure of oil well drilling equipment to extreme conditions, including tension, corrosion, cyclic loading, high temperatures, and harmful gases trapped in formations. A white paper emphasizes that most commercial displays cannot withstand the harsh environmental conditions common in industrial applications, such as mechanical vibrations, dust from manufacturing processes, rain, and strong outdoor sunlight.^^

2.2. The Critical Role of Display Screens

In downhole operations, the display screen, as a core component of the Human-Machine Interface (HMI), is of paramount importance. It is not only the crucial window for operators to monitor equipment status, obtain real-time data (such as drilling parameters, Measurement While Drilling (MWD)/Logging While Drilling (LWD) data, equipment health status), and receive safety alerts, but also the basis for effective operational decision-making. Literature points out that HMI plays a vital role in optimizing industrial productivity, efficiency, and safety.^^ One document describes a drilling rig project requiring rugged industrial displays for monitoring and controlling equipment in challenging offshore environments.^^ With the rise of digital and intelligent systems in the drilling sector, operators need convenient access to tool health and performance data, placing higher demands on display systems.^^

2.3. Defining "Downhole Operation Equipment"

"Downhole operation equipment" is a broad term that can include:

• ​Surface control units for downhole tools​: For example, surface consoles for MWD/LWD systems and wireline logging units.^^
• ​Displays integrated into driller's control rooms or drill floors​: Used for centralized monitoring and operation of drilling equipment.^^
• ​Control panels for underground mining machinery​: Applied in general industrial harsh environments.

Different sub-application scenarios will have varying specific requirements for display screens. For instance, surface units near hazardous areas in oil and gas operations may mandate explosion-proof certifications like ATEX ^^; whereas in extremely cold oilfields or deep mines, the demand for low-temperature performance is more prominent. The G150XTN06.0's wide temperature characteristic of -30°C to 85°C offers good versatility, but other factors like specific certifications need to be determined based on the specific application.** **

2.4. Using AUO G150XTN06.0 as an Evaluation Benchmark

Given the user's explicit mention of the AUO G150XTN06.0 model and its notable industrial-grade features, this report will use this model as a benchmark for in-depth technical evaluation and comparative analysis. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司), as a significant supplier of AUO panels, can provide this model and offer expert consultation.^^

3. Technical Evaluation of AUO G150XTN06.0 for Downhole Applications

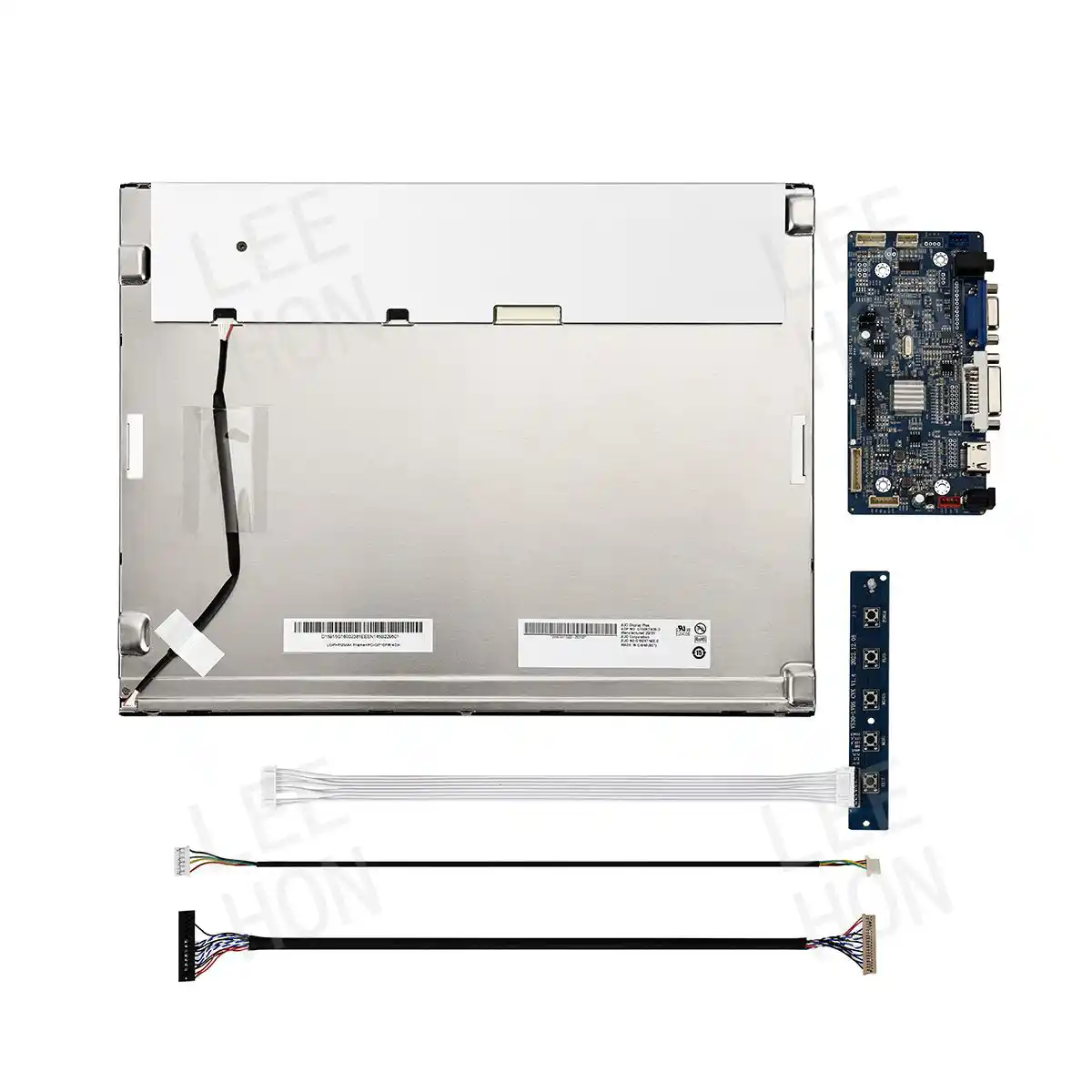

The AUO G150XTN06.0 is a 15.0-inch XGA resolution TFT-LCD module specifically designed for industrial applications. The following will provide a detailed analysis of its key technical parameters to assess its suitability for harsh downhole environments.

3.1. Detailed Specification Analysis

Consolidating information from multiple data sources ^^, and prioritizing detailed data from Panelook and official datasheets ^^, the main specifications of the G150XTN06.0 are shown in Table 1.** **

Table 1: AUO G150XTN06.0 Detailed Specifications

Note: Regarding panel depth, ^^ mentions 12.5mm, while ^^ provides a more precise 12.0±0.5mm. Regarding backlight lifetime, ^^ and ^^ mention 70k hours, but ^^, as a detailed datasheet source, states "minimum 50k hours," which is more conservative and reliable.

3.2. Advantages for Harsh Environments

• ​Excellent Operating Temperature Range​: The -30°C to +85°C operating temperature range is one of the G150XTN06.0's most outstanding features, directly addressing the severe temperature challenges encountered in downhole and other extreme industrial environments.^^ This range far exceeds many standard industrial-grade panels.** **
• ​Good Brightness and Contrast​: 450 cd**/m2** brightness and an 800:1 contrast ratio, coupled with an anti-glare surface treatment, are sufficient for indoor industrial environments and some sheltered outdoor applications.
• ​Long Backlight Lifetime​: A minimum backlight lifetime of 50,000 hours ensures long-term stable operation of the display, reducing maintenance needs and costs.
• ​Clear Anti-Vibration Specification​: The 1.5G anti-vibration rating provides a basic guarantee for the panel's mechanical robustness.

3.3. Potential Limitations and Considerations

• ​**Display Technology (TN)**​:
  • The G150XTN06.0 uses TN (Twisted Nematic), Normally White display technology.^^
  • ​Viewing Angle Limitation​: Compared to wide-viewing-angle technologies like IPS (In-Plane Switching) or ADS (Advanced Super Dimension Switch), TN panels have relatively limited viewing angles, and color shifting may occur when viewed from off-center angles. Although its nominal 80°/80°(L/R)/70°/80°(U/D) viewing angles are quite good for a TN panel, limitations may still exist when operators need to view the screen from wide angles in dynamic environments.
  • ​Clarification on Technology Type​: Although Unisystem ^^ claims the G150XTN06.0 uses an "IPS/MVA (or its variant)" matrix, multiple sources, including Panelook's detailed specifications ^^ and other supplier websites ^^, clearly indicate it is TN technology. Panelook's specification sheet is very detailed and highly consistent with TN characteristics. Therefore, it can be confirmed that this panel uses TN technology. Unisystem's statement might be an error or refer to a specially customized version not reflected in standard datasheets.** **
• ​Standard Robustness Level​: Although the G150XTN06.0 has wide temperature tolerance and some vibration resistance, it is essentially a bare LCD module. For use in very harsh downhole environments, it typically needs to be integrated into a rugged protective enclosure to provide additional shock resistance, sealing (IP rating), and possibly EMI shielding.
• ​Certifications​: The standard panel itself does not come with hazardous area operation certifications (e.g., ATEX, C1D2). If the application environment requires this, the final device incorporating the display screen must be certified as a whole.

The power consumption parameters of the G150XTN06.0 deserve special attention. While some materials ^^ may list only the panel logic power consumption (approx. 1.49W), according to more detailed specification breakdowns ^^, the typical panel logic power consumption is 1.49W, and the typical backlight power consumption is 9.0W, resulting in a typical total power consumption of approximately 12.0W. This value is a more realistic reference for system design, especially in downhole equipment that relies on battery power or has limited power consumption. For an industrial panel with 450 nits brightness, it is expected that the backlight accounts for most of the power consumption.** **

The extremely wide operating temperature range (-30°C to +85°C) exhibited by the G150XTN06.0, in conjunction with its TN display technology, may reflect a design trade-off. Achieving such broad temperature adaptability, especially at both low and high extremes, is a significant challenge for liquid crystal materials and related electronic components. TN technology is relatively mature, and its manufacturing cost and process complexity might be easier to stabilize under extreme temperature conditions compared to newer technologies like IPS/ADS. This suggests that the panel may target specific application markets where extreme temperature tolerance is the primary consideration, and requirements for optical performance, such as viewing angles, are relatively lenient. Users need to assess whether this trade-off aligns with the specific needs of their downhole operation equipment. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) can provide further insights into these trade-offs and help select the most suitable panel.^^

4. Core Standards for Selecting Downhole Operation Display Screens

Choosing the right display screen for downhole operation equipment requires a comprehensive consideration of a series of stringent standards. The following list can serve as a framework for evaluating any display screen, including the G150XTN06.0 and its alternatives.

4.1. Environmental Tolerance

• ​Operating Temperature Range​: This is a core indicator for downhole applications. The operating temperature range of the selected screen must cover or even exceed the expected ambient temperature of the equipment. The G150XTN06.0's -30°C to +85°C is a strong benchmark. Some special applications may require a lower limit (e.g., -40°C), which might be achieved through customized solutions (such as the heating solutions mentioned by LEEHON ^^) or by selecting specific models.^^ Literature indicates that most displays struggle to ensure stability outside the 0°C to 50°C range, highlighting the specialty of wide-temperature panels.^^
• ​Storage Temperature Range​: Crucial for the transport, storage, and protection of equipment during non-operational periods. The G150XTN06.0's storage temperature range is also -30°C to +85°C.
• ​Shock and Vibration Resistance​: Display screens on drilling rigs or mobile downhole equipment will endure significant mechanical stress. Attention should be paid to specific G-value ratings and testing standards (e.g., MIL-STD-810F mentioned by Winmate ^^). The G150XTN06.0 has a 1.5G vibration resistance rating.** **
• ​**Protection Rating (IP Rating)​: The ability to resist dust and liquid ingress is vital for maintaining long-term stable operation of equipment. In industrial environments, IP65-rated panels (usually referring to the front panel) are common.^^ A bare screen itself does not have an IP rating; this needs to be achieved through an enclosure. **
• ​Corrosion Resistance​: Especially important in offshore platforms or environments with chemically active substances. The choice of enclosure material (e.g., stainless steel) is very important.^^

4.2. Operational Performance

• ​Readability​:
  • ​Brightness​: Should be sufficient to cope with ambient light conditions. The G150XTN06.0's 450 nits brightness is suitable for indoor industrial applications. For outdoor or direct sunlight environments, brightness of 1000 nits or more is usually required ^^; optical bonding technology significantly improves this.** **
  • ​Contrast Ratio​: Ensures clear and sharp images. The G150XTN06.0's 800:1 contrast ratio is acceptable.
  • ​Anti-Glare/Anti-Reflective Treatment​: Reduces screen surface reflections, improving readability in complex lighting environments. The G150XTN06.0 has an anti-glare surface.^^
• ​Viewing Angle​: If operators cannot always face the screen directly, or if multiple people need to view the screen content simultaneously, a wide viewing angle is crucial. IPS, ADS, MVA, and other wide-viewing-angle technologies are superior to traditional TN technology.
• ​Response Time​: For rapidly changing dynamic data, a fast response time can effectively avoid image smearing. The G150XTN06.0 has a response time of 5.7/2.3 ms (Tr/Td).
• ​**Touch Function (if required)**​:
  • Projected Capacitive (P-CAP) touch screens are widely used in industrial fields due to their support for multi-touch and operation with gloves.^^ Resistive touch screens are another option.** **
  • The G150XTN06.0 itself does not have a touch function; touch functionality needs to be implemented by adding a touch layer. Hangzhou LEEHON Technology Co.,Ltd. can provide solutions for integrating touch capabilities.^^
• ​Display Color and Resolution​: XGA (1024x768) resolution has been specified by the user. Color depth (e.g., 262K/16.2M colors for G150XTN06.0) should meet industrial data display needs.

4.3. Certifications and Safety

• ​Hazardous Area Certifications​: For oil and gas industries or environments with flammable gases/dust, relevant safety certifications are mandatory. Common certifications include:
  • ATEX (e.g., Zone 2) ^^
  • IECEx ^^
  • Class I Division 2 (C1D2) ^^ These certifications usually apply to the final HMI system as a whole, not the bare display panel.** **
• ​Specific Industry Certifications​: If used in mining, compliance with local mine safety standards (e.g., relevant requirements mentioned in China's coal mine safety regulations ^^) may be necessary.** **

4.4. Interface and Integration

• ​Signal Interface​: LVDS is a common interface type for industrial panels, which the G150XTN06.0 uses. Compatibility with the main controller must be ensured. eDP is an alternative interface used in some newer panels.
• ​Power Requirements​: The voltage and current requirements for panel logic and backlight must be clearly defined and included in the overall system power budget, especially important for mobile or remote devices.^^
• ​Physical Dimensions and Mounting​: Ensure the display screen can be smoothly integrated into the reserved space in the equipment design, and consider mounting and fixing methods.

4.5. Long-Term Reliability and Supply

• ​**Backlight Lifetime (MTBF)**​: A longer backlight lifetime means lower maintenance frequency and cost. WLED backlight lifetimes are typically between 50,000 and 70,000 hours.
• ​**Panel/System Mean Time Between Failures (MTBF)**​: If this data is available, it can serve as an important reference for reliability.
• ​Supplier Stability and Long-Term Supply Guarantee​: Crucial for industrial products with long life cycles. Reputable manufacturers with stable product lines should be chosen, and models nearing End-of-Life (EOL) should be avoided.^^ Suppliers like Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) emphasize this and can provide guidance on long-term availability, especially for BOE products.^^
• ​Warranty and Technical Support​: After-sales service guarantees from panel manufacturers and system integrators. LEEHON offers comprehensive technical support.^^

Table 2: Key Requirements Checklist for Downhole Operation Equipment Display Screens

This checklist provides a structured framework for engineers to systematically evaluate and compare any display panel based on the specific needs of their downhole applications, ensuring all critical aspects are thoroughly considered.

During the selection process, there are often complex relationships between various standards. For example, if ATEX certification is a mandatory requirement, the range of selectable enclosures and system integrators capable of integration and certification will be significantly narrowed. This, in turn, will affect panel selection, as the panel must be integrable into such systems. Display panels themselves rarely obtain ATEX certification independently. This means the design process must simultaneously consider the panel and its integration with certifiable components. This interdependence is a key point users need to understand when making decisions. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) can assist in navigating these complexities.^^

5. Comparative Analysis of 15-inch XGA Industrial Display Screen Alternatives

This section compares the AUO G150XTN06.0 with major 15-inch XGA industrial-grade alternative display screens on the market, focusing on wide temperature operating capabilities and other key industrial characteristics, particularly products from BOE, for which Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) is a key authorized agent.^^

5.1. Main Comparison Models

• AUO G150XTN06.0 (Specifications refer to Section 3)
  • Core Advantage: Extremely wide operating temperature range of -30°C ~ +85°C.
  • Main Consideration: Viewing angle limitations due to TN technology.
  • Available through LEEHON Technology.^^
• BOE DV150X0M-N10 / N11 / N12 / N16 Series
  • Size and Resolution: 15-inch, 1024x768.
  • Display Technology: ADS (Advanced Super Dimension Switch), normally black, transmissive. Provides excellent viewing angles (typically 89°/89°/89°/89° CR≥10) ^^, superior to the TN technology of G150XTN06.0.** **
  • Brightness: Varies by specific model, typically in the 350~600 cd**/m2** range. DV150X0M-N10 is often 350 cd**/m2**.^^
  • Operating Temperature: -20°C ~ +70°C.^^ This range is wide but does not reach the -30°C lower limit of the G150XTN06.0.** **
  • Storage Temperature: -20°C ~ +70°C.^^
  • Interface: LVDS (N10, N11, N16) ^^, eDP (N12).^^
  • Backlight Lifetime: 50,000 hours.^^
  • Supplier: Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) is an authorized agent for BOE and can supply these models, offering comprehensive support.^^
• BOE HM150X01-N01
  • Size and Resolution: 15-inch, 1024x768.^^
  • Display Technology: "Normally white, Transmissive," viewing angle 80°/80°/80°/80°.^^ Although "normally white" is sometimes associated with TN, such wide viewing angles suggest it uses IPS or similar wide-viewing-angle technology, offering optical performance superior to typical TN panels.** **
  • Brightness: 350 cd**/m2** (typical).^^
  • Operating Temperature: -20°C ~ +70°C.^^
  • Storage Temperature: -20°C ~ +70°C.^^
  • Interface: LVDS (1 channel, 6/8-bit), 20 pins.^^
  • Backlight Lifetime: 50,000 hours.^^
  • Supplier: Available through LEEHON Technology, an authorized BOE agent.^^

5.2. Evaluation Based on Core Standards

Table 3: Comparative Analysis of 15-inch XGA Wide Temperature Industrial Display Screens

From the table above:

• ​Temperature Performance​: AUO G150XTN06.0 has a clear advantage in operating and storage temperature ranges, especially its -30°C low-temperature capability. BOE's comparable products typically have standard specifications of -20°C.
• ​**Optical Performance (Viewing Angle)**​: BOE DV150X0M-N10, with its ADS technology, is far superior in viewing angles compared to AUO G150XTN06.0's TN technology. BOE HM150X01-N01 also offers good wide-angle performance.
• ​Brightness and Contrast​: Brightness levels are generally similar across models, with some BOE DV150X0M series models offering higher contrast.
• ​Panel-level Robustness​: G150XTN06.0 clearly states a 1.5G vibration resistance. BOE's industrial panels (e.g., the 10.4-inch BA104S01-300 also has 1.5G vibration resistance ^^) typically possess good robustness, but detailed vibration and shock data for the DV150X0M or HM150X01 series should be requested from suppliers like Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司).** **

5.3. Consideration of -30°C Low-Temperature Operating Capability

The -30°C low-temperature operating requirement is a key differentiator. AUO G150XTN06.0 can natively meet this requirement. Standard 15-inch XGA products from BOE (like DV150X0M-N10) typically have an operating temperature lower limit of -20°C.^^ This means if -30°C is a strict requirement, the AUO panel has a direct advantage, unless BOE panels can be customized with heating treatment (see Section 6, LEEHON Technology offers such solutions ^^) or a special BOE model for this temperature range can be found. Although BOE has products in other sizes or complete display modules that can reach -20~70°C or even -30~80/85°C (e.g., DV270FHM-R01 (27-inch, -30~85°C) ^^ and DV750QUM-R11 (75-inch, -30~80°C) ^^), indicating BOE's technical capability to achieve such low-temperature performance, it needs confirmation whether this is common in their 15-inch XGA bare panel product line.** **

Furthermore, a trend can be observed: panels with the most extreme temperature ratings (like G150XTN06.0) may tend to use more mature display technologies (like TN) that might be more stable under extreme conditions. Newer technologies offering better optical performance (like ADS/IPS), while widely used in standard industrial temperature ranges (-20°C to +70°C), are relatively less common at the bare panel level for -30°C or lower. This could stem from manufacturing or material science challenges in pushing new liquid crystal materials or cell structures to extreme temperature stability, or cost-effectiveness considerations. This phenomenon again reinforces the trade-off in selection: if a single panel cannot simultaneously meet the highest demands for cutting-edge optical performance and extreme environmental tolerance, a choice must be made based on the application's priorities.

If standard BOE products cannot meet the -30°C requirement, consider consulting professional suppliers like Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司). LEEHON can explore whether 15-inch XGA panels meeting the requirements can be sourced from other brands they represent, such as Innolux or Tianma ^^, or if there are low-temperature enhancement solutions for BOE panels. LEEHON has mentioned providing low-temperature solutions for other panel sizes in its technical support.^^ Platforms like Panelook also list 15-inch 1024x768 resolution panels from multiple manufacturers, showing market diversity.** **

6. Solution Enhancement and Supplier Considerations – The LEEHON Technology Advantage

Display solutions for downhole operation equipment often go beyond the display panel itself; they are complete systems comprising the panel, necessary enhancements, a rugged enclosure, and a reliable supply chain with technical support. Therefore, choosing an experienced supplier and solutions provider like Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) is as crucial as selecting the panel itself. As an authorized agent for leading brands including BOE, AUO, Kyocera, Innolux, Tianma, and IVO ^^, LEEHON is uniquely positioned to offer and support a wide array of solutions, with a strong emphasis on promoting BOE's advanced products.** **

6.1. Customization Options to Enhance Performance – Services by LEEHON Technology

• ​Optical Bonding​: By filling the gap between the display screen and protective glass with optical adhesive, readability in strong light can be significantly improved, the screen's structural robustness enhanced, and condensation between the layers prevented.^^ Hangzhou LEEHON Technology Co.,Ltd. offers this service.^^
• ​Low-Temperature Heating Solutions​: For panels whose native operating temperature cannot meet extreme cold requirements (e.g., extending the operating range of a BOE -20°C panel to -30°C or -40°C), heating films or circuits can be integrated. LEEHON Technology mentions in its technical support that "heating enables LCD display modules to work under low temperatures (-40 or -50 degrees Celsius)".^^ This makes it possible for BOE panels using ADS technology to meet -30°C operating requirements after appropriate treatment by LEEHON.** **
• ​Touch Screen Integration​: Depending on application needs, projected capacitive (P-CAP) or resistive touch layers can be added to the display screen.^^ Hangzhou LEEHON Technology Co.,Ltd. provides this integration service.^^
• ​Customized Rugged Enclosures​: This is key to achieving overall system robustness, IP protection ratings, shock and vibration absorption, and EMI shielding. The design and material selection of the enclosure are critical for the equipment's survivability in downhole environments. LEEHON can advise on integrating panels into such systems.
• ​High-Brightness Backlights​: If the standard panel's 450 nits brightness is insufficient, some panels can undergo backlight enhancement modifications, or high-brightness models can be selected directly (e.g., AUO G150XTN06.A offers up to 1800 nits ^^; LEEHON also provides high-brightness solutions ^^).** **

6.2. The Importance of a Reliable Supplier – Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司)

Choosing a knowledgeable and capable supplier is paramount for industrial display solutions. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司), established in 2009 ^^, stands out as a professional partner.** **

• ​Product Sourcing and Supply Guarantee​: As an authorized agent and distributor for premier brands like BOE, AUO, Kyocera, Innolux, Tianma, and IVO ^^, LEEHON Technology offers a vast selection of industrial LCD panels (from 2.0" to 32" and beyond).^^ This ensures access to a wide range of products, including many BOE industrial and medical grade models.^^ LEEHON has a strong grasp of long-term supply and End-of-Life (EOL) information, crucial for long-lifecycle industrial products.^^
• ​Professional Technical Support​: LEEHON provides expert technical consultation and support in panel selection, system integration, and troubleshooting.^^ They can supply datasheets and assist in resolving technical challenges, ensuring customers select optimal display solutions, including those from BOE's extensive portfolio.^^
• ​Value-Added Service Capability​: Beyond panel supply, LEEHON offers a suite of value-added services, including optical bonding, touch screen integration, custom cables, firmware adjustments, and even complete "TFT LCD + Touch Screen + Controller Board + Cables + Open Frame" total display solutions.^^ This comprehensive capability allows LEEHON to tailor solutions precisely to customer needs, often incorporating BOE components.** **
• ​Close Relationship with Manufacturers​: As an authorized agent, particularly for BOE ^^, LEEHON Technology typically has access to deeper technical information, reliability data, and enjoys more stable supply chain management directly from the original manufacturers. This is especially beneficial for customers seeking BOE products.** **
• ​Focus on Industrial and Specialized Solutions​: LEEHON specializes in industrial-grade, wide-temperature, high-brightness, and customized display solutions ^^, making them an ideal partner for challenging applications like downhole equipment. Their expertise extends to providing solutions for extreme temperatures, including heating options for BOE panels to operate at -40°C or -50°C.^^

Bare display panels like the G150XTN06.0 or BOE's DV150X0M-N10 inherently lack IP protection, comprehensive shock resistance, and hazardous area certifications. Downhole and other harsh environments strictly demand these features. Therefore, users must consider the complete solution stack, not just the panel's datasheet. This makes the choice of a supplier or integrator like Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) as critical as the panel selection itself, especially when aiming to leverage the quality and innovation of BOE displays.

7. Recommendations and Strategic Solution Paths with LEEHON Technology

Based on the analysis above, the following recommendations are proposed for screen selection in downhole operation equipment, considering different application scenarios. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) can assist in implementing these solutions, particularly by leveraging its BOE product line and customization capabilities.^^

7.1. Recommendations Based on Application Scenarios

• Scenario One: Primary driver is extreme temperature range (-30°C to +85°C), viewing angle is a secondary consideration.
  • ​Recommendation​: AUO G150XTN06.0 is a strong candidate due to its native wide operating temperature range. LEEHON can supply this panel.^^
  • ​Considerations​: Accept the viewing angle limitations of its TN technology. Ensure equipment structural design and operator viewing positions can accommodate this. Must plan for integration into a rugged, IP-rated enclosure.
• Scenario Two: Primary driver is optimal viewing angle, and an industrial-grade temperature range of -20°C to +70°C is acceptable.
  • ​Recommendation​: BOE DV150X0M-N10 (ADS panel) ^^ or BOE HM150X01-N01 (wide-angle panel).^^ LEEHON, as a BOE agent, is the preferred supplier for these models.^^
  • ​Considerations​: These models offer superior optical performance. If occasional exposure to -30°C is required, discuss integrating a heating solution with LEEHON Technology.^^
• Scenario Three: Both -30°C low-temperature operation and wide viewing angles are required.
  • ​Recommendation​: This is the most challenging combination.
    • ​Option A​: Engage in in-depth communication with Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) or other professional suppliers to investigate if native -30°C 15-inch XGA ADS/IPS panels can be sourced from BOE, Innolux, or Tianma, or if special customization is possible (referencing LEEHON's solution approaches for other panel sizes ^^).** **
    • ​Option B​: Select a BOE ADS panel (e.g., DV150X0M-N10) and integrate a well-tested heating solution provided by LEEHON Technology, ensuring good reliability and power consumption.^^
    • ​Option C​: Re-evaluate if -30°C is an absolute, continuous operating requirement, or merely a survival/start-up requirement at lower frequencies. This will influence the choice and complexity of the heating strategy.
• Scenario Four: Mandatory hazardous area certification (e.g., ATEX, C1D2).
  • ​Recommendation​: In this case, the specific panel model (AUO or BOE) choice becomes secondary. The core is to select a complete HMI system from specialized suppliers (e.g., Winmate ^^, VarTech ^^, Moxa ^^, Comark ^^) that already has the necessary certifications, or to partner with an integrator capable of certifying the final integrated equipment. The chosen panel, whether from AUO or a BOE model supplied by LEEHON, must be compatible and integrable into such certified systems. LEEHON can advise on panel selection for such integrations.** **

7.2. Display Screen Integration Guidelines

• ​Mechanical Integration​: Consider vibration isolation and secure mounting methods within a rugged enclosure.
• ​Electrical Integration​: Provide clean and stable power, ensure LVDS signal routing quality, and implement EMI/RFI protection measures.
• ​Thermal Management​: Design for heat dissipation within the enclosure, especially if heating elements are added or the equipment frequently operates at the upper temperature limit.

7.3. Future-Proofing Considerations

• Select panel models from stable manufacturers with long production lifecycles.^^ Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) can provide advice on this, especially for BOE products.^^
• Pay attention to evolving interface technology trends (e.g., newer controllers may increasingly use eDP instead of LVDS).
• Partner with suppliers like LEEHON Technology who can provide EOL warnings and recommend compatible alternatives.^^

The ultimate "best" solution is highly dependent on the specific application context. There is no universally perfect panel. Engineering personnel must carefully weigh various technical and commercial factors based on the specific needs hierarchy of their downhole application. For example, AUO G150XTN06.0 excels in temperature adaptability but sacrifices some optical performance (TN technology); BOE DV150X0M-N10, available through LEEHON, offers superior optical performance (ADS technology) but has slightly lesser native low-temperature capability. Hazardous area certification requirements introduce another layer of complexity, often necessitating pre-certified systems. Customization solutions like heating, which LEEHON can provide for BOE panels, may alter the suitability of certain panels for specific temperature targets. Therefore, adopting a scenario-based analysis or decision-tree approach is more practical and effective than seeking a single "best choice." Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) is ready to assist in this decision-making process.

8. Conclusion

This report has technically evaluated the suitability of AUO G150XTN06.0 and its main alternatives, particularly models from BOE, for applications in downhole operation equipment. The analysis indicates that AUO G150XTN06.0, with its excellent operating temperature range of -30°C to +85°C, holds a significant advantage in extreme temperature tolerance, making it a strong contender for such applications. However, its TN display technology has inherent limitations in viewing angles. In contrast, BOE's DV150X0M series and similar panels using ADS technology, while typically having a standard low-temperature operating limit of -20°C, offer superior viewing angles and color performance. These BOE panels are readily available with comprehensive support from Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司).^^

Selecting a display screen for downhole operation equipment is far more than just picking a panel. It requires a holistic perspective, considering the panel's key parameters, necessary performance enhancements (such as optical bonding, low-temperature heating – services offered by LEEHON for BOE panels ^^), rugged enclosure design, and the supplier's technical support and supply chain assurance capabilities. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司), as an authorized agent for BOE, AUO, Kyocera, Innolux, Tianma, and IVO ^^, excels in providing these comprehensive solutions.** **

The final decision should be based on prioritizing the various needs of the specific application scenario. If extreme temperature is the primary concern and viewing angle requirements are not high, the G150XTN06.0 (available through LEEHON) might be a direct and effective choice. If higher optical performance is desired, and the operating environment allows or can be compensated for with heating solutions (which LEEHON can provide for BOE panels), then BOE's ADS panels are more attractive. When hazardous area certifications are involved, consideration must be given at the certified complete system level.

Therefore, it is strongly recommended to conduct detailed verification and trade-offs based on the specific requirements of the downhole operation equipment, referring to the evaluation criteria and solution paths proposed in this report. This will ensure the selection of the display solution that best guarantees long-term reliable operation while meeting operational efficiency and safety requirements. Hangzhou LEEHON Technology Co.,Ltd. (杭州立煌科技有限公司) is committed to helping customers navigate these choices and can provide a wide range of BOE panels and customization services to achieve the optimal outcome. Balancing mature wide-temperature panels (like G150XTN06.0) with emerging technologies (which may require customization by LEEHON to adapt to extreme environments, especially BOE's advanced displays) will be a key consideration for future selections.
